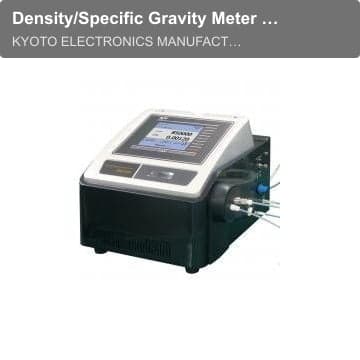

Density/Specific Gravity Meter DA-640
Basic Information
539
27
6
3.7(55)
Subcategory & Sub-subcategory
Trade Type
Sell
Product Name
Density/Specific Gravity Meter DA-640
Manufacturer(s)
Specifications
- Measurement Method: Resonant frequency oscillation
- Measurement Range: 0 - 3 g/cm3
- Measurement Temp Range: 0 - 96℃ (32 - 204.8°F)
- Accuracy*1: Density
- Temp: ±0.02°C (±0.04° F)
- Repeatability *2: Density
- Minimum Sample Required: 1) Approx. 1mL (Syringe) 2) Approx. 2mL (Pump)
- Measurement Time: 1) 1 to 4 mins (Manual) 2) 2 to 10 mins (Auto)
- Display: 1) 5.7-inch colour TFT LCD; 640 x 480 2) Shows density, specific gravity, oscillation frequency, temperature, concentration and other messages.
- Viscosity Correction: Yes
- Sampling: 1) Manual by syringe 2) Auto by peristaltic pump
- Method: Saves up to 100 different methods in built-in memory
- Stability: Four modes of stability according to measurement accuracy and time
- Density Auto Correction: 1) Saves conversion table or formula at your desired temperatures according to your samples. 2) Temperature conversion table programmed according to ASTM standard for petroleum, petroleum products and lubricating oils.
- Auto Conversion: 1) Between concentration and density 2) Between temperature and density
- Statistics: 1) Auto or manual calculation of mean value, SD and coefficient 2) Recalculation, data deletion
- Interfaces: 1) LAN: x 1; Personal computer (PC) 2) USB 1.1: x 2; USB flash drive, keyboard, barcode reader, Epson inkjet printer *3 3) RS232C: x 2; Dot Matrix Printer, Auto Clean and Sampling Unit, Multiple Sample Changer
- Options: 1) Printer : DP-600, IDP-100 2) Sampling unit, Changer : DCU-551N/H, CHD-502N/H/C 3) Software : SOFT-CAP (Data Acquisition Software)
- Data I/O: 1) USB flash drive as data storage medium 2) Application Notes provided in USB flash drive
- Wetted Materials: PTFE, borosilicate glass, SUS304
- Ambient Conditions: 1) Temperature : 5 – 35℃ (41℃ - 95°F) 2) Humudity : 85%RH or below (No condensation allowed)
- Power Supply: AC100 – 240V; 50/ 60Hz (Comes with AC adapter)
- Power consumption: 40W (max. 120W, min.20W)
- Dimensions: 320 (W) x 365 (D) x 250 (H) mm (12.6 (W) x 14.4 (D) x 9.8 (H) inches)
- Weight: 18kg (39.7Ibs)
- Export Packing in Double Carton Box: G/W 21kg; 540 (W) x 480 (D) x 460 (H) mm (G/W 46.3Ibs; 21.3 (W) x 18.9 (D) x 18.1 (H) inches) (May vary in some cases)
Other Information
Additional Description:
KYOTO ELECTRONICS MANUFACTURING (Shanghai) Co., Ltd., established in 2008 and headquartered in Shanghai, manufactures, imports, and trades analytical instruments for the pharmaceutical sector, specializing in thermal analyzers and moisture analyzers, alongside CRO contract research services. The company markets its instruments to Western Europe, Asia, and the Middle East, drawing on a recognized brand known for reliable delivery and high-quality service.
